Batch Processing

HyperGas provides multiple Python scripts to process L1 data into L2 and L3/L4 products. You can find them in the <HyperGas_dir>/scripts/ directory.

Hint

When dealing with large amounts of data, it’s better to run the process in the background. We recommend using tmux, which lets you run a program on your machine, disconnect, and reconnect later to check the progress. You can install tmux via conda or mamba:

>>> conda install -c conda-forge tmux
>>> mamba install -c conda-forge tmux

Product Level

Description

Variables

Format

L1

Radiance data

longitude, latitude, radiance

–

L2

Orthorectified retrieval data
longitude, latitude,
trace gas enhancement,
denoised trace gas enhancement,
RGB,
surface pressure, 10-m U, 10-m V
NetCDF,
PNG,
HTML

L3

Masked plume data
longitude, latitude,
trace gas enhancement,
surface pressure, 10-m U, 10-m V,
emission rates info
NetCDF

L4

Emission estimation of plume
plume_id, plume_latitude, plume_longitude,
datetime, country, state, city,
name, ipcc_sector, gas, plume_bounds,
instrument, platform, provider,
emission, emission_uncertainty,
emission_uncertainty_random, emission_uncertainty_wind,
emission_uncertainty_calibration,
emission_csf, emission_csf_uncertainty,
emission_csf_uncertainty_random,
emission_csf_uncertainty_wind,
emission_csf_uncertainty_calibration,
surface_pressure, wind_source, wind_speed, wind_direction,
ime, l_ime, ueff_ime, leff_ime,
ueff_csf, n_csf, l_csf,
alpha1, alpha2, alpha3, beta1, beta2,
wind_speed_all, wind_direction_all, wind_source_all,
azimuth_diff_max, dist_max,
land_only,land_mask_source
CSV

Note

The complete workflow for generating plume data is as follows:

l2_process.py –> l2b_plot.py –> plume app –> l3_process.py –> l2_reprocess.py (optional) –> l3_reprocess.py (optional) –> l3_plot.py

The l3_process.py generates both L3 (NetCDF) and L4 (CSV) products.

Here are the key points of each script:

L1 –> L2

Step 1: l2b_process.py

This script processes L1 data and exports retrieval products (NetCDF) to the same directory. Users can use xarray to easily read and plot NetCDF files.

The script supports modifying following parameters:

  • skip_exist (bool): Whether to skip already processed data.

  • unortho_export (bool): Whether to export the unthrorectified retrieval field.

  • species (str, list): The gas species to be retrieved.

    • ‘all’: retrieve all supported gases

    • A single gas name, e.g. ‘ch4’

    • A list of gas names, e.g. [‘ch4’, ‘co2’]

  • data_dir (str): The root dir of L1 data.

    The script recursively processes all data within the specified root directory and saves NetCDF files in each subdirectory. For example, if L1 data is organized as <data>/<facility_1>/ and <data>/<facility_2>/, setting data_dir = <data> will process all L1 data under both facility_1 and <facility_2>, exporting the corresponding L2 data to each folder separately.

If species = 'ch4', the output L2 file will contain the following variables:

Variable name

Description

y

y coordinate of projection

x

x coordinate of projection

latitude

2D latitude

longitude

2D longitude

ch4
2D ch4 enhancement field
(2110–2450 nm for methane and 1930–2200 nm for CO$_2$)

ch4_comb
2D ch4 enhancement field
(Retrieved gas enhancement using the full near-infrared spectral range (1300–2500 nm))

ch4_denoise

denoised 2D ch4 field

ch4_comb_denoise
denoised 2D ch4_comb field
(this is the default variable to create plume masks later)

ch4_mask

a priori ch4 masks

radiance_2100
2D radiance data closest to 2100 nm
(this is useful to check albedo effects)

rgb

2D RGB

segmentation

2D pixel classification (land or ocean)

sp

2D surface pressure

u10

2D 10 m U wind speed

v10

2D 10 m V wind speed

Step 2: l2b_plot.py

This script reads L2 data and plots images as PNG files. These images are then combined into chunked HTML files using Folium. Users can view multiple variables across different days by toggling layers in the HTML interface.

The script supports modifying following parameters:

  • skip_exist (bool): Whether to skip already plotted data.

  • root_dir (str): The root_dir of the L2 data.

  • plot_markers (bool): Whether to plot pre-saved markers (see Configuration) on the map.

  • chunk (int): Number of files per HTML chunk. Reduce this value if you encounter memory errors.

  • pad (float), lat_zoom (float), lon_zoom (float): Controls the plotting region. If set to None, the whole scene is plotted.

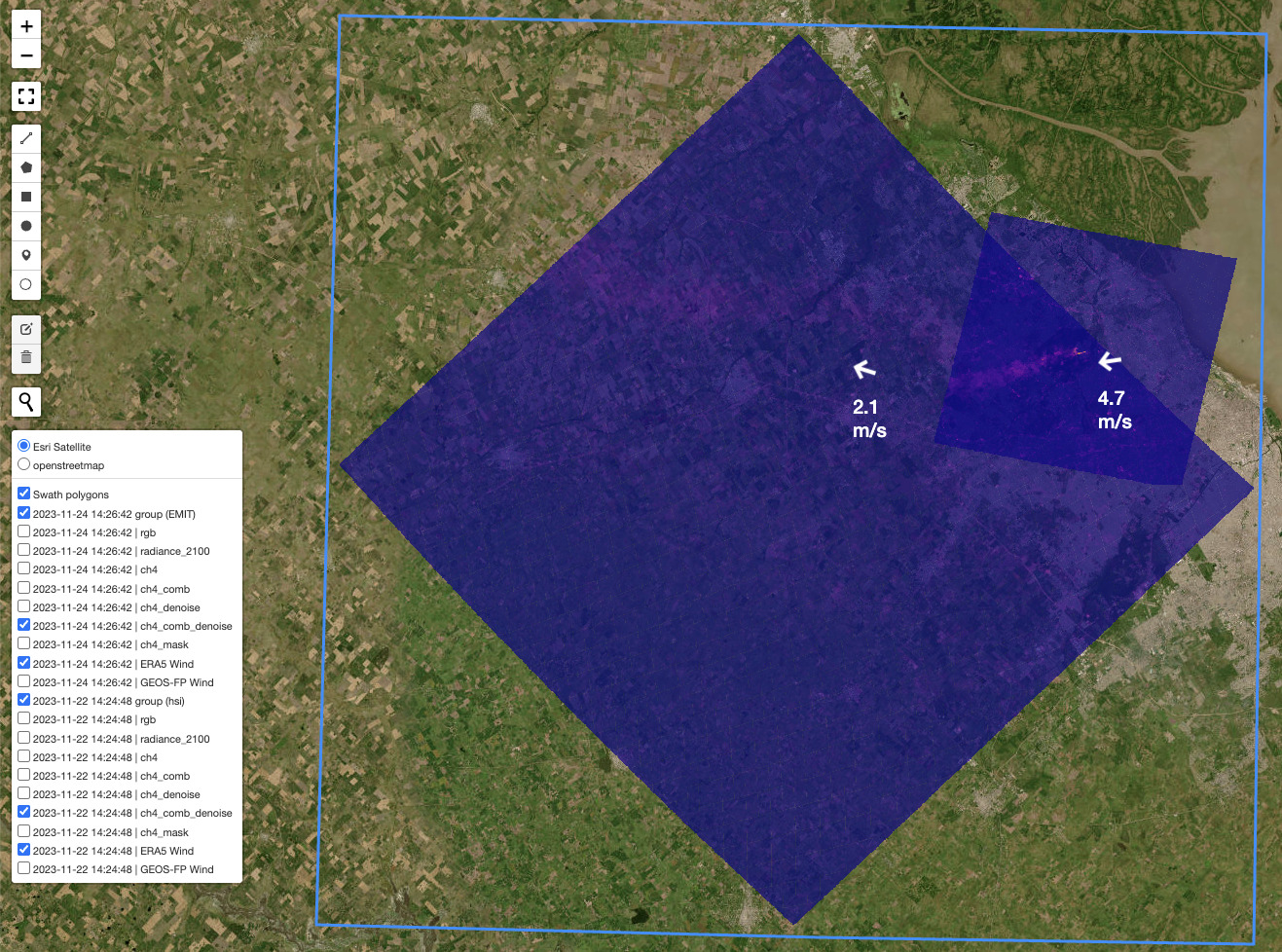

Example of an HTML output:

_images/l2_html.jpg

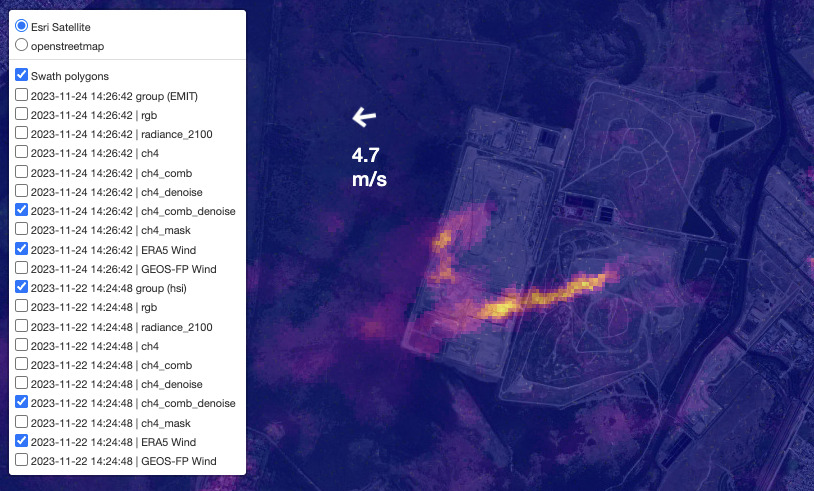

The layers on the left have two main components: group and variables. The group level controls all sub-layers: RGB, radiance, and gas product map. Wind arrows are positioned at the scene center and can be repositioned by clicking and dragging:

_images/l2_html_wind.jpg

Note

The colorbar limit for the denoised field is set automatically from the mean_value to the maximum value, For the original field, it is hardcoded in <HyperGas_dir>/hypergas/folium_map.py to allow comparison across different days.

L2 –> L3/L4

Step 1: Mark plume source locations

To generate L3 and L4 products, users need to add the plume markers using Plume APP (See 1) Plume Marker).

Step 2: Emission estimation

Next, uesers can run l3_process.py or use the app (See 2) Emission) to generate plume masks and estimate emission rates.

Note

Time-saving tips:

  • Running l3_process.py to generate the default plume masks and checking the app to adjust them if necessary.

  • Running the emission estimation only when the plume mask is ready.

Supported parameters of l3_process.py:

  • root_dir (str): Root directory of L2 data.

  • gas (str): Gas species to reprocess.

  • ipcc_sector: the emission sector defined by IPCC. - ‘Electricity Generation (1A1)’, ‘Coal Mining (1B1a)’, ‘Oil & Gas (1B2)’, ‘Livestock (4B)’, ‘Solid Waste (6A)’, ‘Other’

  • land_mask_source (str): Source for land classification. Options: “OSM”, “GSHHS” or “Natural Earth”.

  • wind_source (str): Source for wind reanalysis data. Options: ‘ERA5’ or ‘GEOS-FP’

  • land_only (boolean): Whether only to condiser land pixels

  • wspd_manual (float or None): Manually override wind speed with zero uncertainty. If None, the reanalysis wind speed from the CSV file is used.

  • azimuth_diff_max (float): The maximum of azimuth of minimum rotated rectangle. - keep this as default unless you find obvious wrong plume pixels. Refer to Plume Masking for guidance on adjustments.

  • dist_max: The maximum of dilation distance (meter) - keep this as default unless you find obvious wrong plume pixels. Refer to Plume Masking for guidance on adjustments.

Step 3: Plot plume summary

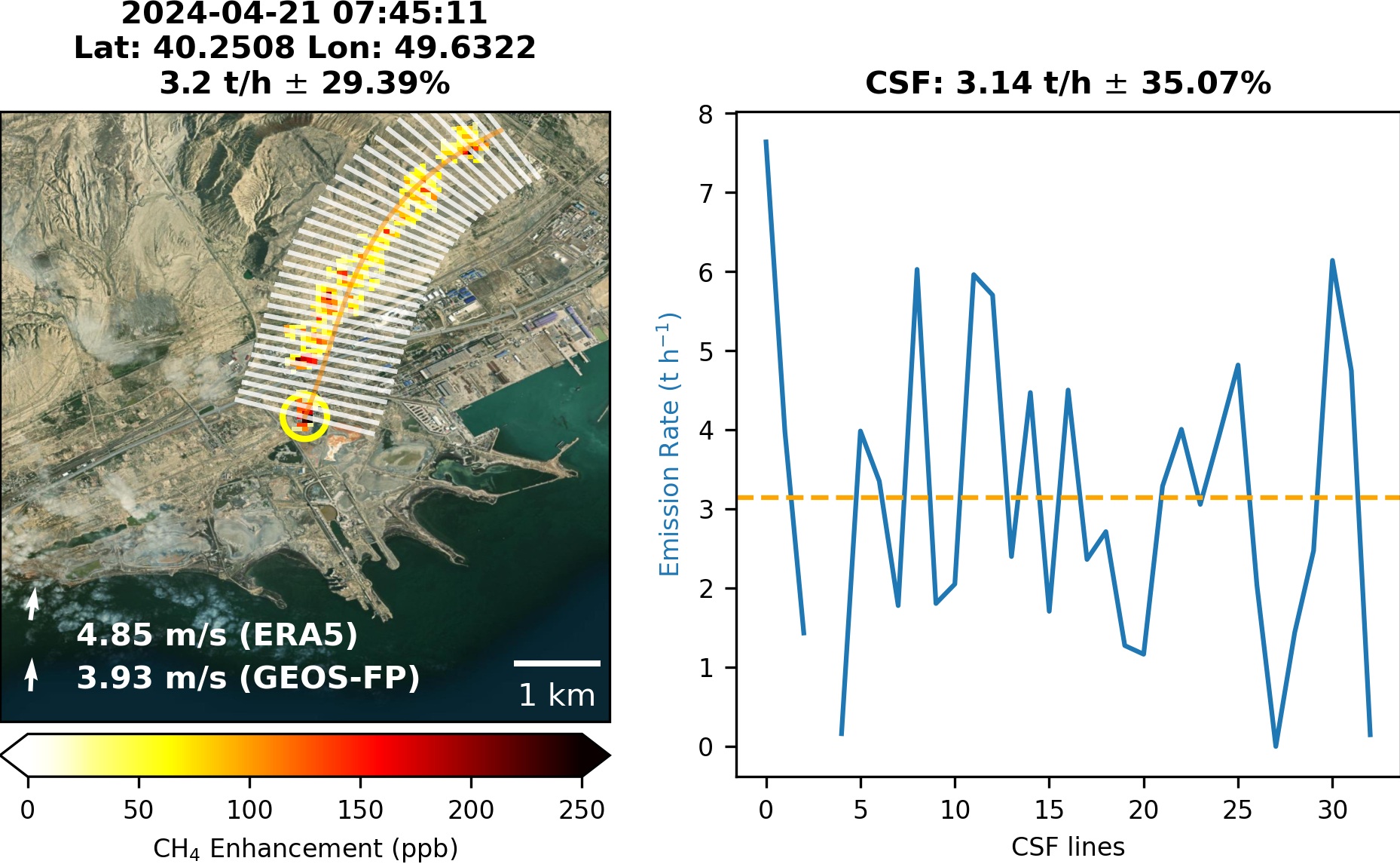

Once the emission estimation is verified, users can run l3_plot.py to generate the scientific plot of the plume, as shown below:

_images/estimation_case.jpg

Hint

The scientific images (*L3*plume<plume_id>*png) will be saved in the same directory as the data. These images will also appear on the Emission page of the app, where they can be downloaded by clicking the download button below the image.

Reprocessing (optional)

HyperGas supports reprocessing L2 and L3 data by excluding L3 plume pixels from the matched filter analysis.

Reprocessing L2 data

Since the matched filter assumes plume signals are sparse (i.e., present in only a small fraction of pixels), we exclude pixels within identified plume masks, so that background statistics are estimated only from non-plume pixels and the sparsity assumption remains valid.

For example, a Norte III landfill emission was initially estimated at 13 t/h but was corrected to 20.7 t/h after reprocessing. Therefore, running l2_reprocess.py is essential to refine L2 results using L3 plume masks.

Supported parameters:

  • root_dir (str): Root directory of L2 data.

  • species (str): Gas species to reprocess.

  • rad_dist (str): Radiation distribution type — ‘auto’, ‘lognormal’ or ‘normal’. - ‘auto’: if the methane emission rate is higher than 10 t/h, the lognormal matched filter will be applied.

  • land_mask_source (str): Source for land classification. Options: “OSM”, “GSHHS” or “Natural Earth”.

Reprocessing L3 data

To recalculate emission rates using the updated L2 data, users can either rerun the Plume App or execute the l3_reprocess.py script. This script reads both L2 and existing L3 NetCDF files and generates updated L3 products according to the settings specified in the L3 CSV file.

Supported parameters:

  • root_dir (str): Root directory of L3 data.

  • reprocess_nc (boolean): Whether to regenerate L3 NetCDF files. - If False, the script will calculate emission rates using the existing NetCDF data based on the CSV settings.

  • wind_data (str): Source of wind data. Options: ‘auto’, ‘ERA5’, or ‘GEOS-FP’. - 'auto': reads wind source from the CSV file.

  • wspd_manual (float or None): Manually override wind speed. If None, the reanalysis wind speed from the CSV file is used.

Note

Please verify the plume mask after reprocessing. Due to changes in the retrieval data, the mask may differ even if the CSV settings remain the same.
